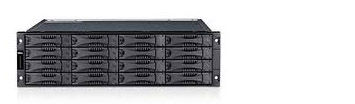

Dell EqualLogic PS5000XV

The Dell EqualLogic PS5000XV of virtualized iSCSI SAN arrays are designed to bring enterprise-class features, intelligence, automation and reliability to remote or branch office, departmental and small-to-medium business (SMB) storage deployments.

Dell EqualLogic PS5000XV

Storage Controllers: Dual controllers with a total of 2 GB battery-backed memory
Battery-backed memory provides up to 72 hours of data protection
Hard Disk Drives: Sixteen (16) SAS hot-pluggable hard disk drives
Drive Capacities: 15,000 RPM SAS drives available in 146GB, 300GB, 450GB and 600GB
System Capacities: 2.3 TB using sixteen (16) 146 GB SAS disk drives
4.8 TB using sixteen (16) 300 GB SAS disk drives
7.2 TB using sixteen (16) 450 GB SAS disk drives
9.6 TB using sixteen (16) 600 GB SAS disk drices
Volumes: Up to 1,024
Snapshots: 512 per volume / up to 10,000 total
Host Protocol: Any standards-compliant iSCSI initiator
Operating Systems Supported: Windows® 2000 Server, Windows Server® 2003, Windows Server® 2008, including Hyper-V™, Windows Vista®, Windows XP®, Red Hat® Enterprise Linux®, SUSE® Linux Enterprise, Linux, Sun™ Solaris, UNIX®, IBM® AIX®, HP-UX, Mac OS® X, VMware® ESX Server 3 / 3.5 / ESXi 3.5, Citrix XenServer, Virtual Iron®, Novell® Netware®
RAID Support: Automatic RAID 5, RAID 10, and RAID 50
GbE Network Interfaces: Three (3) copper per controller
TCP Network Support: IPv4, IPv6 core support including JITC
AC voltage: 100-240 VAC ±10% single phase
Management Interfaces: SNMP, telnet, SSH, HTTP, Web (SSL), host scripting
Serial console
Multi-administrator support
Ability to configure a separate management network
Physical: Height: 13 cm / 5.12 in / 3 EIA units
Width: 48.26 cm / 19.0 in / 1EC Rack Compliant
Depth: 55.1 cm / 21.7 in
Weight: 35 kg / 77.6 lb (maximum configuration)
