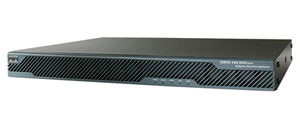

Cisco 5510 Adaptive Security Appliance

The Cisco ASA 5510 Adaptive Security Appliance delivers advanced security and networking services for small and medium-sized businesses and enterprise remote/branch offices in an easy-to-deploy, cost-effective appliance. These services can be easily managed and monitored by the integrated Cisco ASDM application, thus reducing the overall deployment and operations costs associated with providing this high level of security. The Cisco ASA 5510 Adaptive Security Appliance provides high-performance firewall and VPN services and five integrated 10/100 Fast Ethernet interfaces. It optionally provides high-performance intrusion prevention and worm mitigation services through the AIP SSM, or comprehensive malware protection services through the CSC SSM. This unique combination of services on a single platform makes the Cisco ASA 5510 an excellent choice for businesses requiring a cost-effective, extensible, DMZ-enabled security solution.

The Cisco ASA 5510 supports up to 10 appliances in a cluster, offering a maximum of 2500 AnyConnect and/or clientless VPN peers or 2500 IPsec VPN peers per cluster. For business continuity and event planning, the Cisco ASA 5510 can also benefit from the Cisco VPN FLEX licenses, which enable administrators to react to or plan for short-term bursts of concurrent Premium VPN remote-access users, for up to a 2-month period.

Cisco ASA5510-BUN-K9 Specification

Manufacturer:Cisco Systems, IncInterfaces/Ports:1 x RJ-45 Auxiliary Management
Product Part Number:ASA5510-SEC-BUN-K91 x RJ-45 Console Management
Number of Ports:52 x USB USB 2.0
Ethernet Port:Yes5 x RJ-45 10/100Base-TX Network LAN
Fast Ethernet Port:Yes
Gigabit Ethernet Port:YesVirtualization:2 SSL VPN Peer
DSL Port:Yes250 IPSec VPN Peer
Standard Memory:1 GB50 802.1Q VLAN Support
Flash Memory:64 MB50000 Concurrent Connection
VPN Protocols:IPSec, SSL9000 Connections Per Second
Compatible Rack Unit:1UFirewall Protection:Access Control
Dimensions:1.8″ Height x 17.5″ Width x 14.3″ DepthWorm Scanning
Weight (Approximate):20 lb(9.07 kg)Antivirus
Product Type:Firewall ApplianceIntrusion Prevention
DSL Port:Not ApplicableEncryption Standard:3DES AES
License Type:Unlimited User License
Number of Expansion Slots:2
Expansion Slots:(1 Total) CompactFlash (CF) Card
(1 Total) SSM
